You have the idea of a brilliant play of light and shadow?

With the flexibility of CELLON® combined with sliding or folding fittings, you not only solve the protection against the sun's rays according to your needs, but also create a highlight on your facade at the same time.

super light (7-9kg/m2) and therefore easy to use even as large elements
available in 3'000 colours and over 100 designs to suit your taste
can be combined with almost all sliding and folding fittings
enhancing on the outside, exciting play of light on the inside

01.References

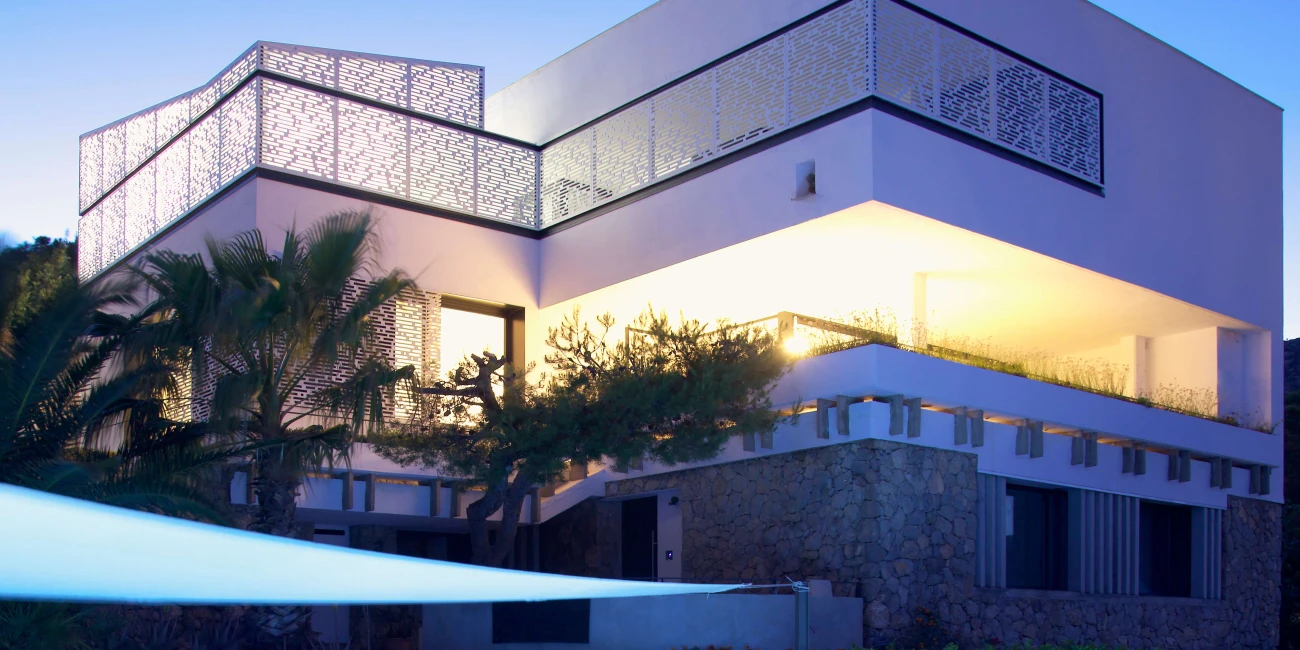

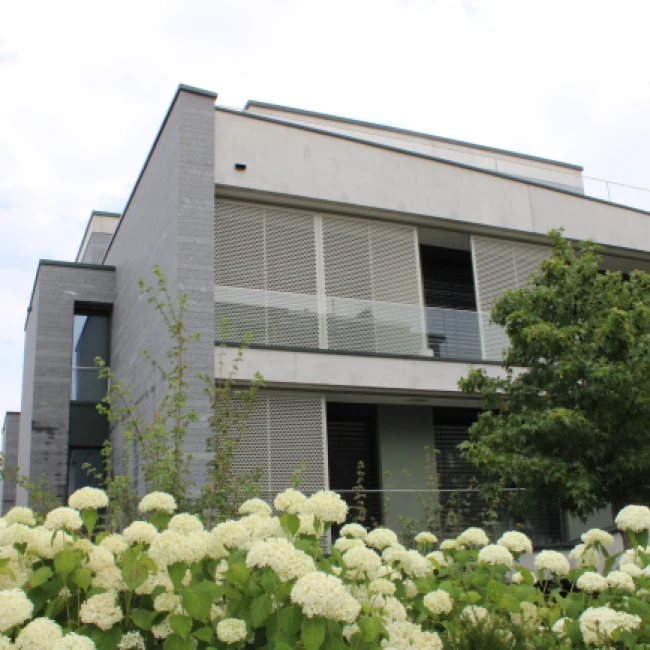

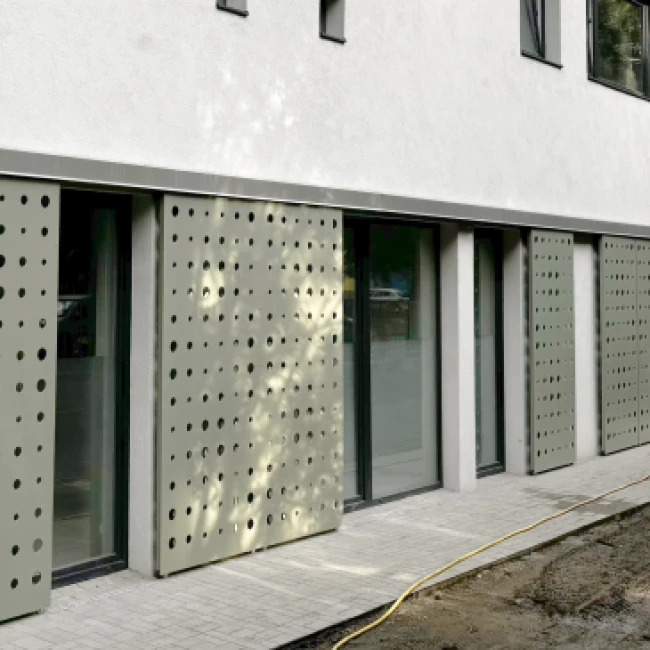

Flexible Sliding Elements as Privacy and Sun Screens and also Visual Eye-Catchers

Sliding, Folding & Shading Elements

to References

02.Material

Our CELLON® panel is a high-pressure laminate panel (HPL Compact or solid core panel) consisting of 70% cellulose webs and 30% phenolic resin. The extremely weather and frost-resistant material is ideal for outdoor applications.

The HPL panel convinces with absolute moisture resistance and minimal expansion. In contrast to conventional HPL panels, CELLON® is characterized not only by the variety of shapes and colors available, but above all by its natural appearance. The colour is applied directly to the resin and thus the top layer, which means that the sterile resin surface does not stand out, but rather the selected color concept is ideally emphasized.

Thickness:

Formats

The raw panels are project-specifically cut to the desired dimensions using laser technology (including drill holes). You choose the width (x) and the length (y) of the panels individually. Do you want round cuts or additional cut-outs? Simply draw them in your DXF plan and they will be manufactured to size.

Please consider the following raw panel formats for waste optimisation:

perforated panels

CELLON® design

raw width	raw length
1200 mm 1280 mm 1500 mm 1800 mm	2400 mm 3000 mm* 3600 mm 3600 mm

plain panels

CELLON® classic

raw width	raw length
1200 mm 1280 mm 900 mm	2400 mm 3000 mm* 3600 mm

*Only this format is also available with a decor surface in stone or wood look.

to Materials

03.Colours and Surfaces

Our products are available in over 3,000 colours according to RAL or NCS S colour charts, as well as with wood or stone decor. For that certain something, there are also metallic colours with a glimmer effect.

04.Design

The choice of panel cut-outs is almost unlimited. In addition to the design collection designed by us, we also produce your own design creation, completely individual and tailored to your project.

to Collection

05.Construction Solutions

For the play of light and shadow. CELLON® design panels are very well suitable for sliding or folding applications. The customized panels are fixed on a metal frame, which is directly installed on the facade with the respective sliding or folding fittings. Due to the low weight of the perforated CELLON® panels (ca. 7-9kg/m2) the handling of the elements is as easy as it can be.

There are numerous possibilities for the design of sliding, folding and shading elements. Examples and important technical information are summarized in our data sheet.

to Data Sheet

06.Project Procedure

We help you to adapt the selected design, whether your own or from the collection, to your individual project and thus support you already in the planning phase and in the preparation of the tender texts. We deliver the customised panels and, if desired, also the frame construction to the craftsman's company, which takes takes the assembly on site.
